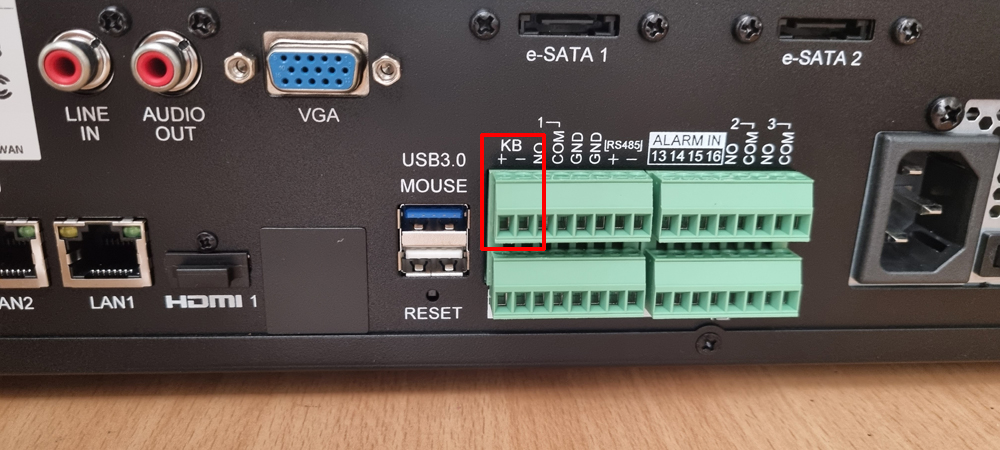

To connect a PIH-931D keyboard to an NVR7832 you will need to wire the keyboard breakout box in to the rear ports labelled KB +/-

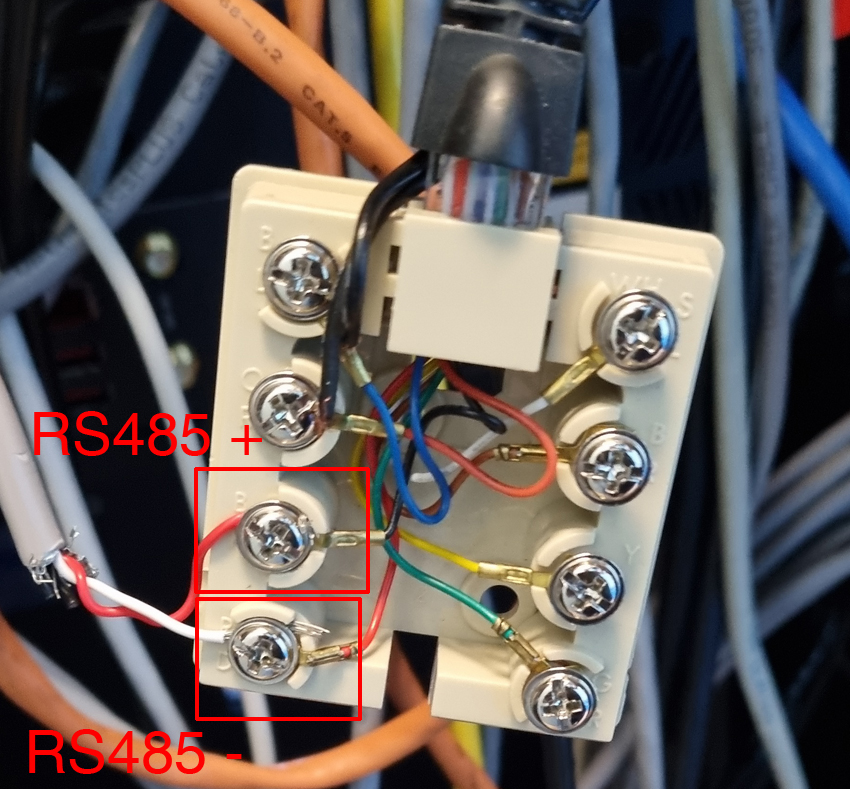

The wiring from the breakout needs to be as follows:
Keyboard Wiring for 7 Series NVR
