Advanced Options on the AI Plugin
Under the SETTINGS tab on the AI plugin are General options.
These include these 3 options.
- Same ID Object in same location trigger only once
- NVR/DVR triggering only once CIF (80 port)
- Person independent detection
Same ID Object in same location trigger only once = When this is ticked, the object/classification will only be read once. This means for the NVR that it will only receive one Metadata tag per object.
If this option is selected & on your NVR, you have display Object Box set the object box will only appear for a second the moment you enter the zone.
NVR/DVR triggering only once CIF (80 port) = If “Same ID Object in same location trigger only once” is selected, then this option doesn’t matter. However, if it isn’t selected & you activate this option then the NVR would continue to receive METADATA from the AI camera when an object continues to stay in the trigger zone, also if object box is selected this stay on the object whilst in the zone. The NVR would only log this event once.
On your NVR
The METADATA text stays red as NVR is still receiving data.

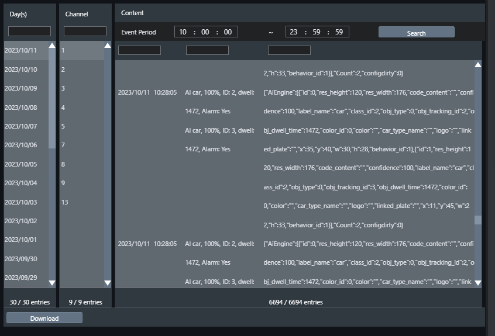

The METADATA log still receives data.
The alarm logs would only have one alarm, that was as the object entered the trigger zone.
