Adding a device to LILINPro using P2P

Below is a short guide showing how to add a device to the LILINPro mobile app using P2P.

In the guide below, we are adding an NVR6216 using P2P. The process will be the same regardless of what NVR you are adding to the LILINPro app.

1) Open LILINPro and select 'Add Device'

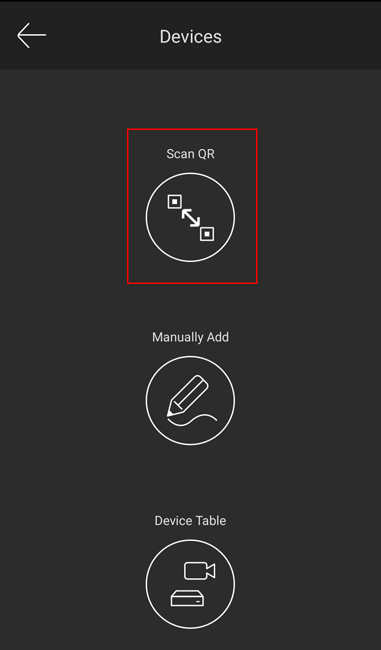

2) Select 'Scan QR'

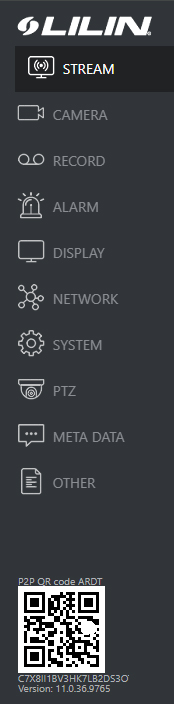

3) Your phone will now switch to the camera. Scan the QR code located in the NVR menu. Below is an example showing where the QR code is located.

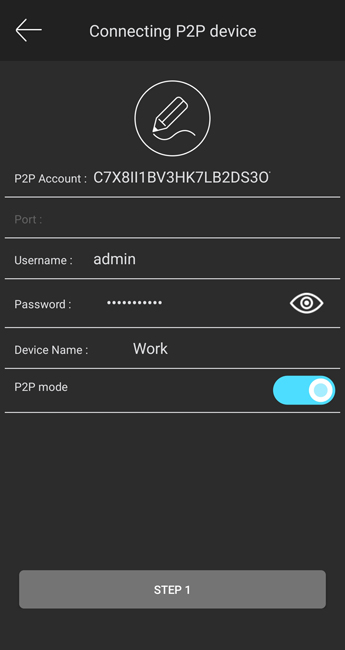

Once the QR code has been scanned the app will switch to a screen like below. Here you will need to enter the NVR password and a device name. Ensure the P2P slider is active.

4) Click 'Step 1' and the app will test and verify the entered site details.

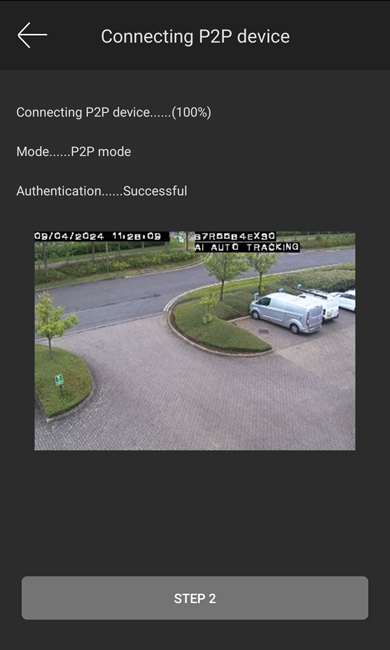

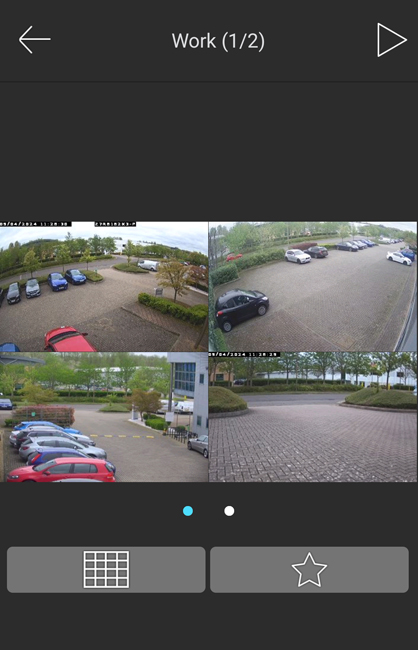

5) Click 'Step 2' and the NVR will connect to the device and display the cameras.
