The Navigator Web Viewer is installed directly on the Navigator server.
The first step will be to download the Navigator Web Viewer you can download the latest version of Navigator Web Viewer here.

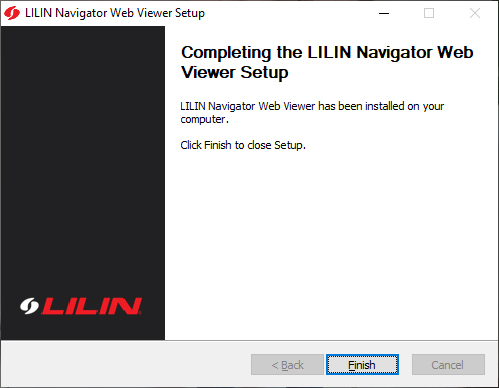

Once downloaded, extract and run the download and follow the onscreen instructions. Once the install process has been completed, you will see the screen below.
Once you have clicked finish, you will need to confirm that the install was sucessful and the web viewer is running. To do this, simply open a web browser on the Navigator server and type the below directly in to a web browser.
127.0.0.1
or
localhost

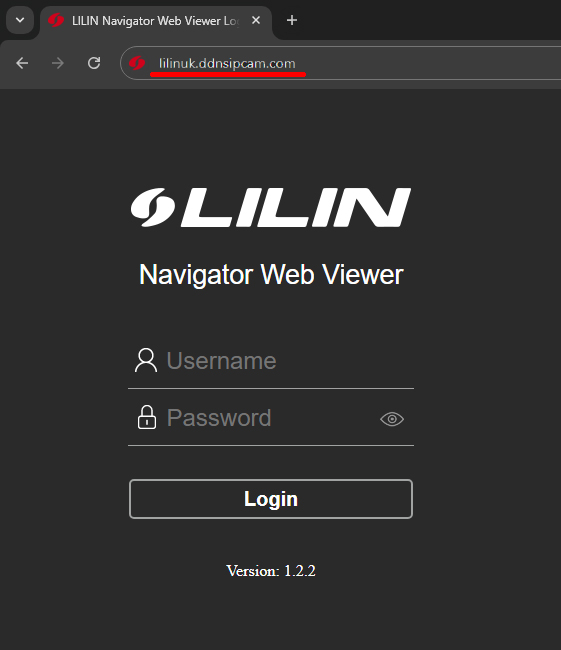

If everything has been successful, you should now see the Navigator Web Viewer login screen.
It is recommended to test the web viewer by logging on to the system using the administrator account or a user with administrator privileges.
Next will be to log in to the Web Viewer with any sub users to confirm everything is working with those accounts. On sub user accounts, you should have access to everything you would from the client software or local server.
If a sub user is unable to log in, please check that the required permissions have been granted for the users you want to access the web viewer. More information can be found here.

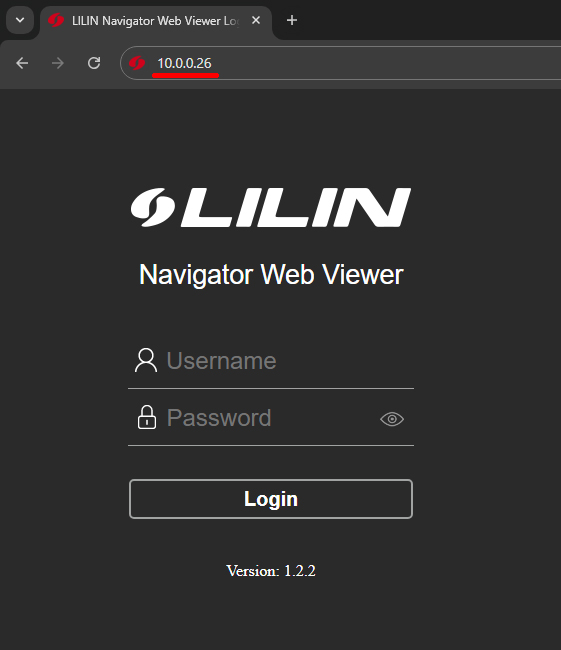

Now the Navigator Web Viewer has been installed and tested, you can access the server via other PC's on the network by opening a web browser and entering in the Navigator server IP address in to the browsers address bar. The web viewer uses port 80 as default.
If you are unable to access the Navigator Web Viewer, please check the status of the firewall on the server and make any required changes to allow access to the server via port 80.
Grant Access via the internet
If you have the need to allow access to the Navigator server over the internet, you will need to open port 80 (default port) to the Navigator server in your onsite firewall.
