The NVR6 Series are provided with a 4-pin, DC 48V PSU.

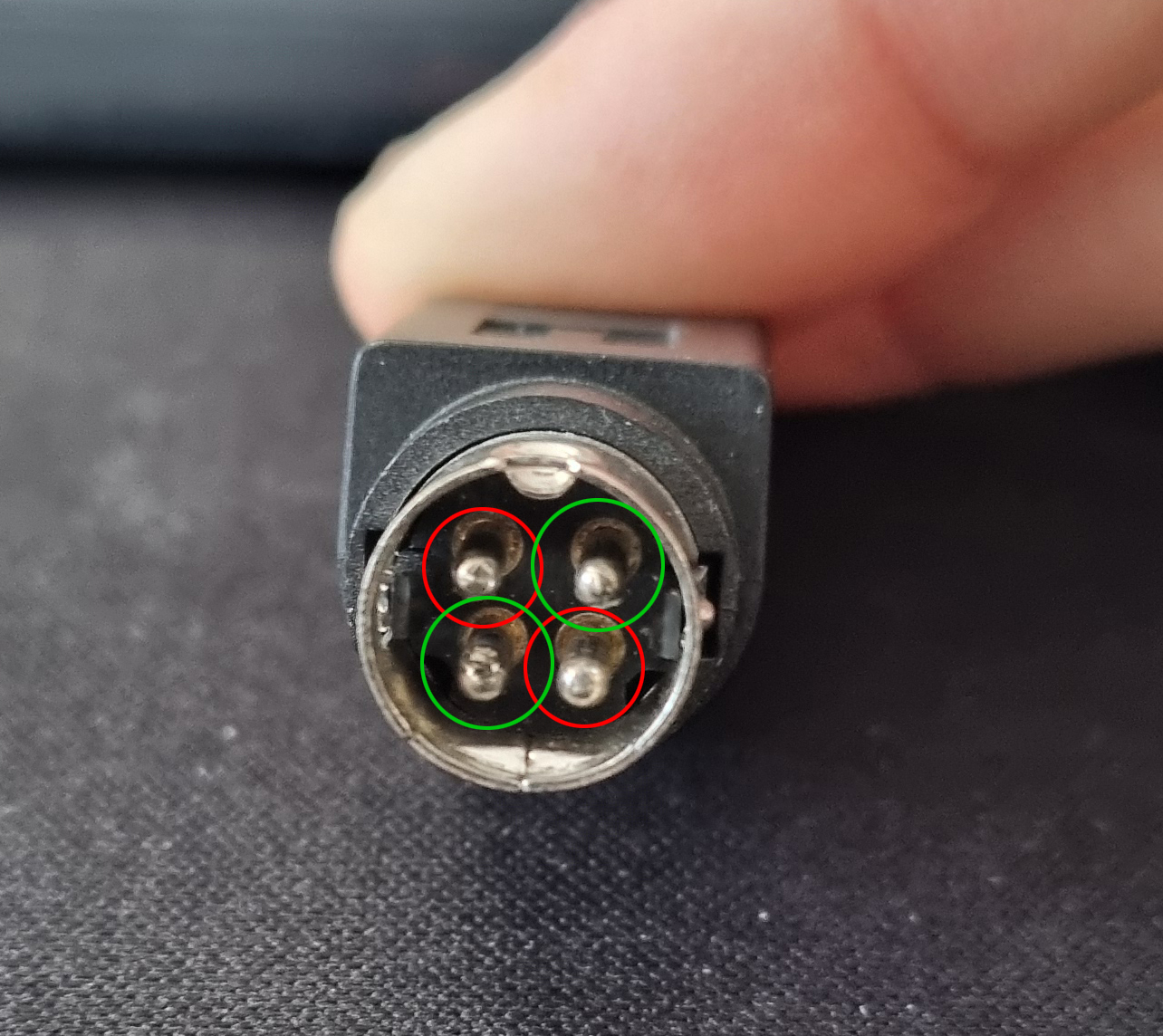

If you need to measure the output of the PSU, you will need to put the multi-meter probes on to both the red pins and then the green pins.
These should give you a voltage reading.
***Be careful not to short the pins together when testing. If shorted, this could cause damage to the PSU and or result in personal injury***
