If you require the RTSP URLs for your LILIN camera, they can be found within the camera's web interface (GUI). However, the most commonly used stream URLs are:
- /stream0 - Encoder 1 (typically the camera's primary HD stream)
- /stream1 - Encoder 2 (typically the camera's secondary SD stream)
Each stream has its own RTSP URL and can be used independently, allowing video to be streamed simultaneously to multiple devices, applications, or recording platforms as required.
To identify the exact RTSP stream URLs available on your specific LILIN camera model, follow the steps outlined below. These steps will allow you to view the configured stream profiles and obtain the correct RTSP paths directly from the camera's interface.
1) Log in to your camera and select 'Setup' from the top right menu bar.
2) Select the 'Video/Audio' tab

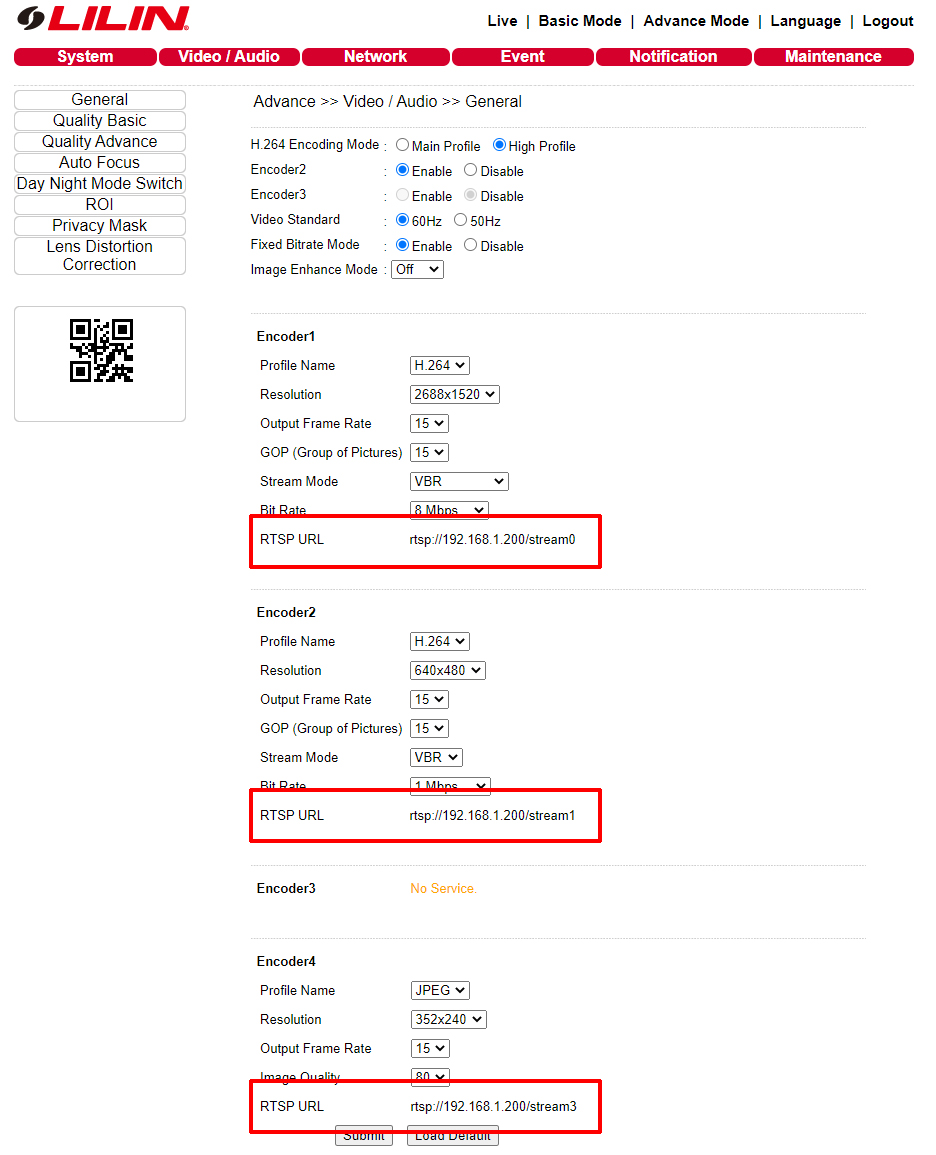

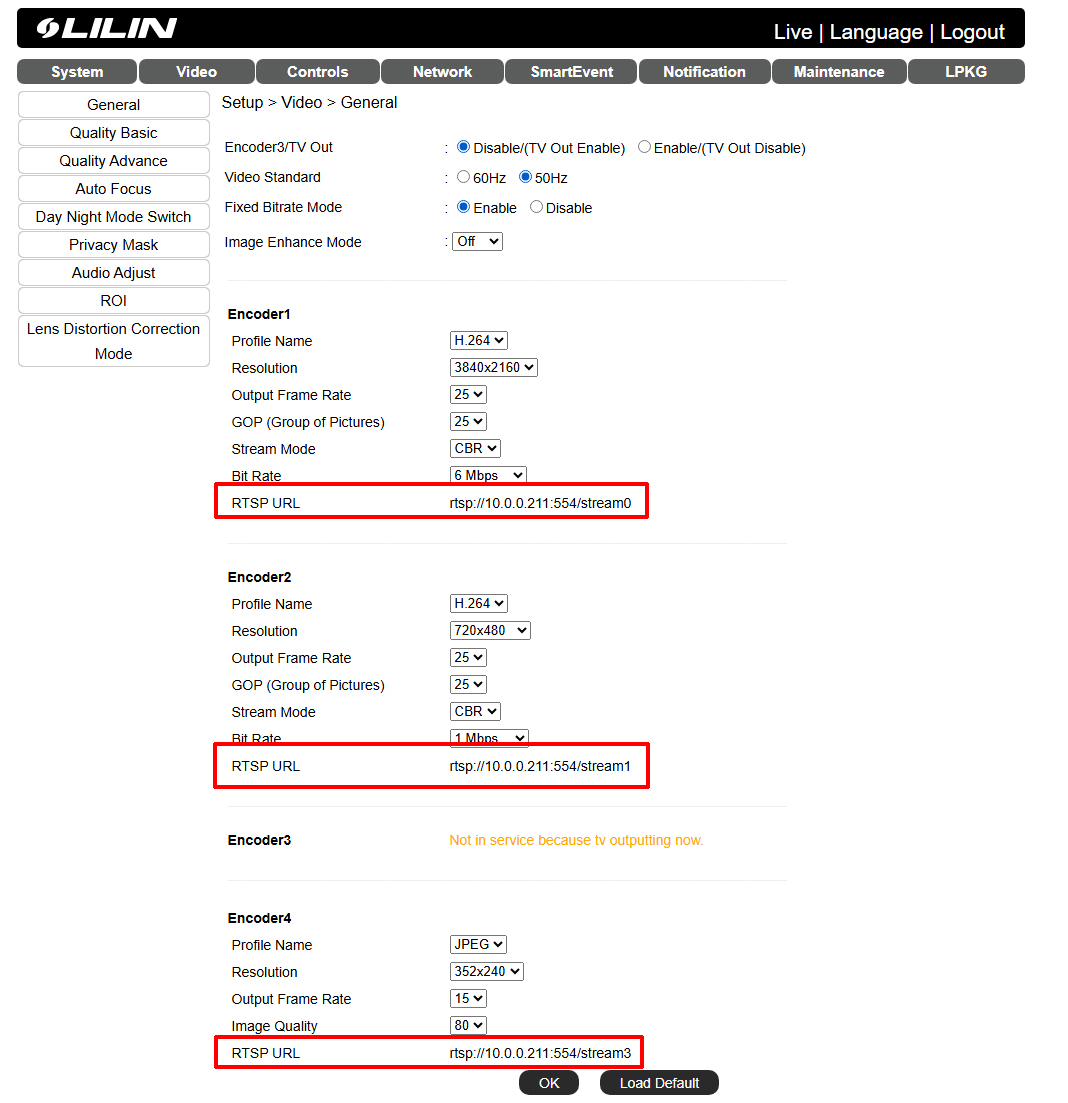

3) You will see the RTSP URL's for each stream (encoder) listed under the relevant section. Just copy and paste these URL's in to your RSTP client.
***Additional Note***
It is possible to add a username and password to an RTSP URL for your RSTP client to authenticate with the device it is trying to connect to an example of an RTSP URL containing login details looks like the example below:
rtsp://admin:pass@192.168.1.200/stream0
As default RTSP is going to connect using port 554, if your device is not using port 554 for RTSP or you want to use RTSP over HTTP then it is necessary to specify this port in the RTSP URL, an example of this can be seen in URL below:
rtsp://admin:pass@192.168.1.200:80/stream0
