This guide provides step-by-step instructions for playing back and reviewing recorded video footage from a device configured in the LILINPro mobile app.
Note: This guide assumes the device has already been added to the LILINPro app and that live viewing has been tested and confirmed to be working correctly.

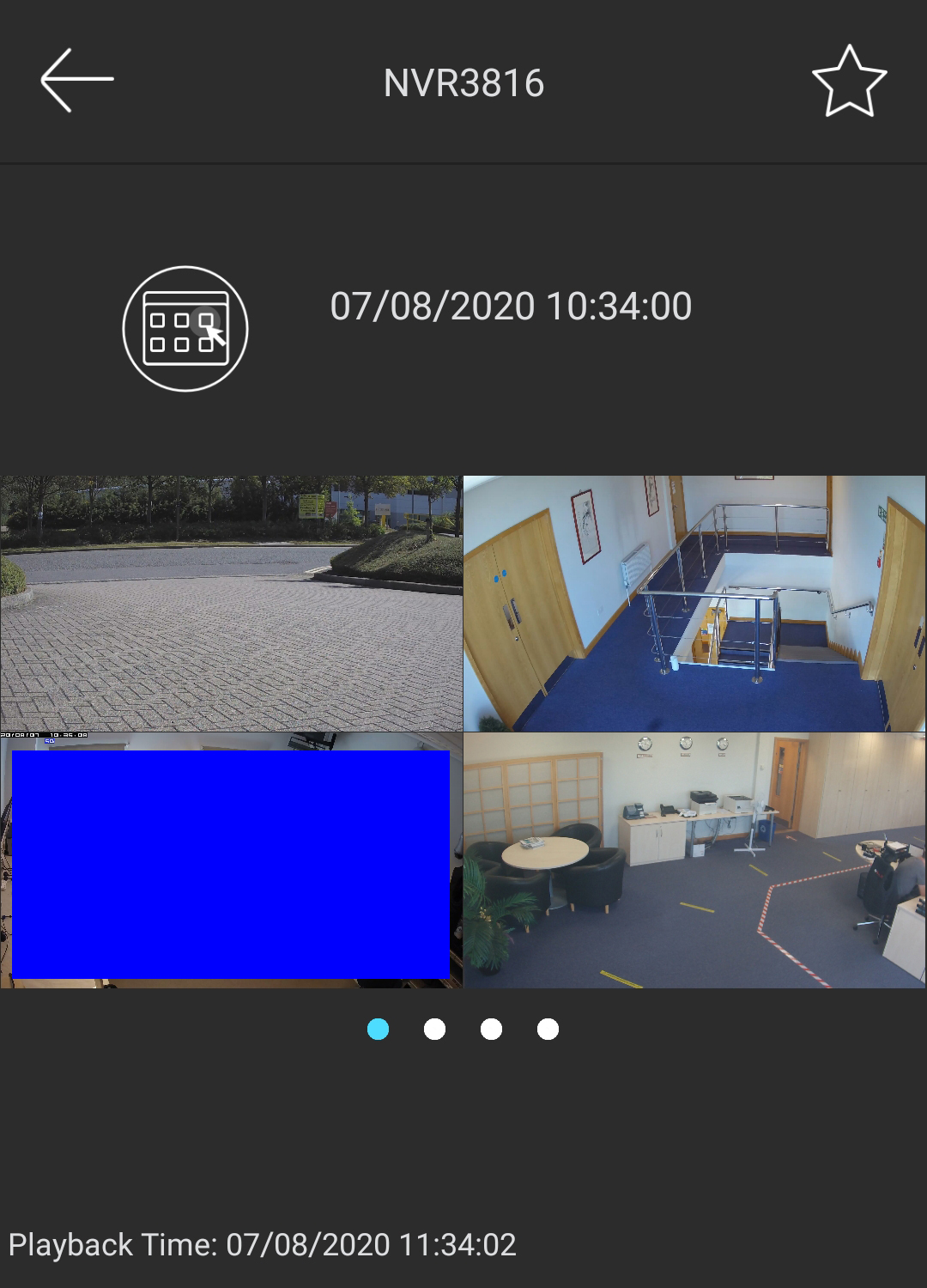

2. A quad-view display will open, showing the first four cameras connected to the device.
To view different cameras in the quad-view layout, swipe left or right across the screen.
Continue swiping until the required cameras are displayed.
3. There are two methods available for locating a specific date and time for video playback:
Option 1

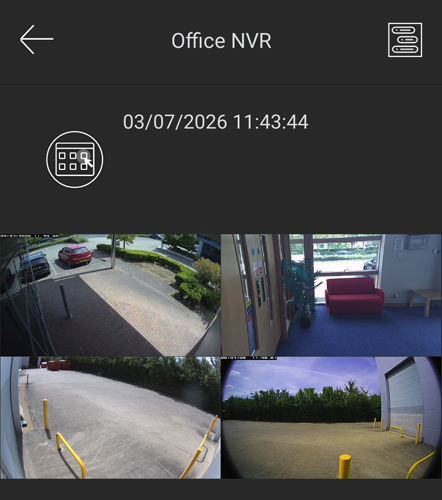

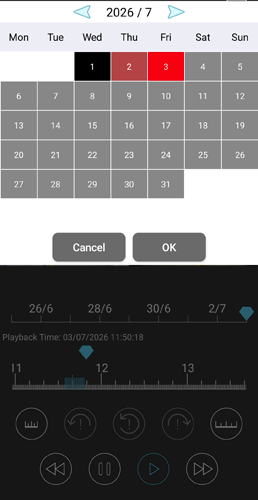

Once this icon has been selected, a new screen will open, allowing you to choose the date for the recorded footage you wish to review.

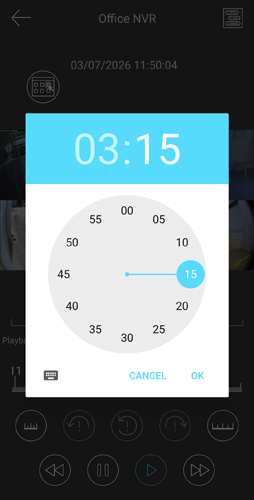

Once the required date has been selected, tap OK. The app will then display a time selection screen.
Choose the required playback time and tap OK again to begin loading the recorded footage from the selected date and time.

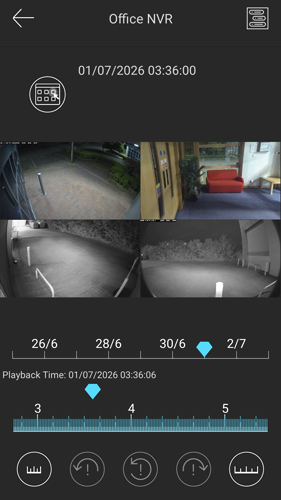

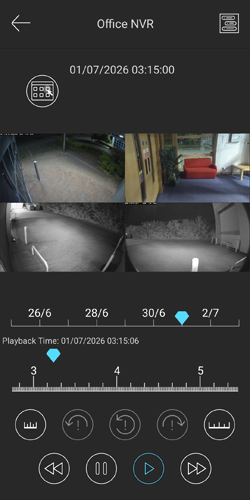

The selected video should begin playing from the chosen date and time.
While playback is in progress, you can swipe left or right across the screen to switch between different groups of cameras in the quad-view display, allowing you to review footage from other cameras without leaving playback mode.
Option 2
A quad-view display will open, showing the first four cameras connected to the system. Swipe left or right until the required camera is visible on the screen.
Tap the required camera to switch it to full-screen view.

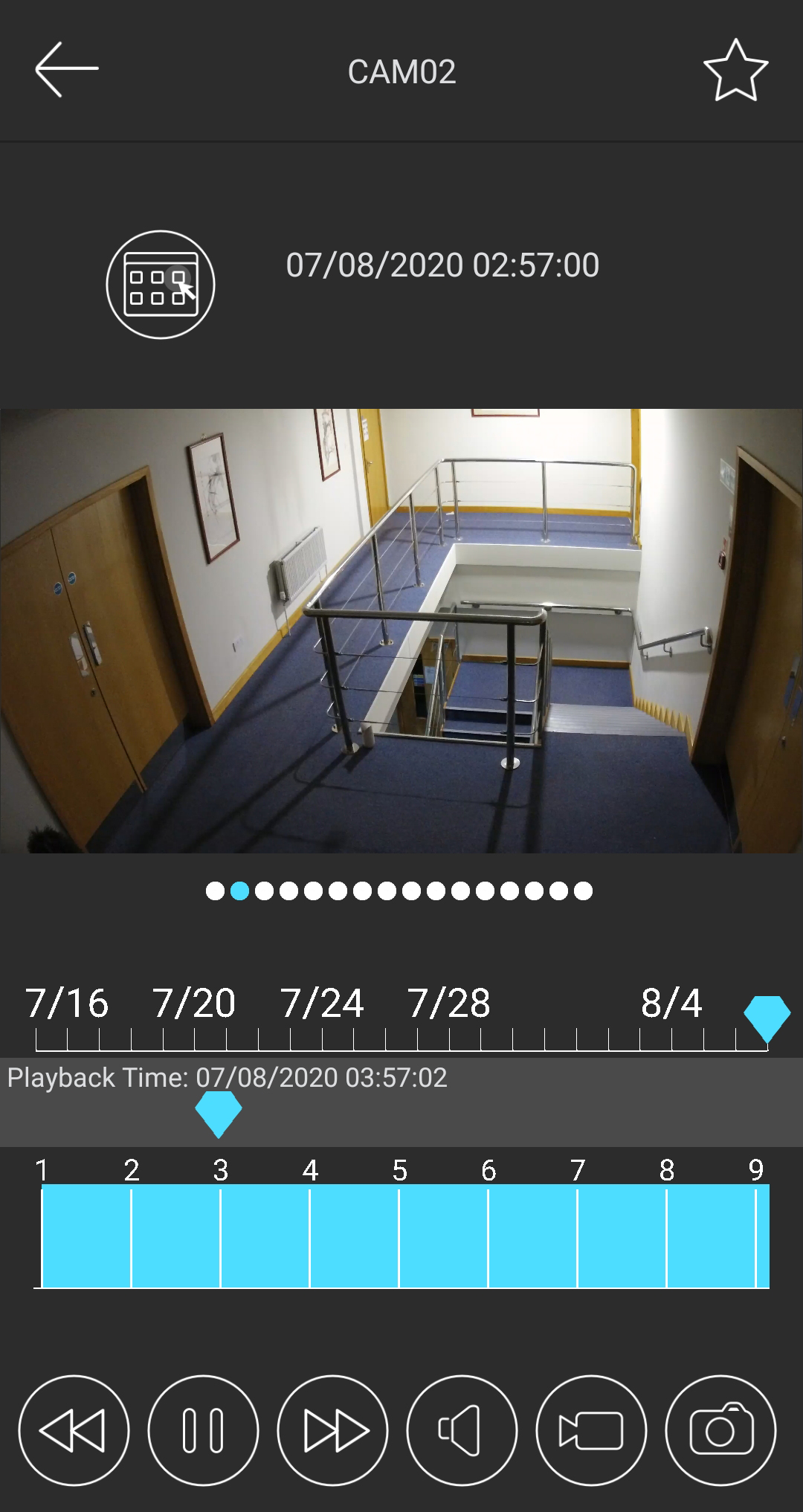

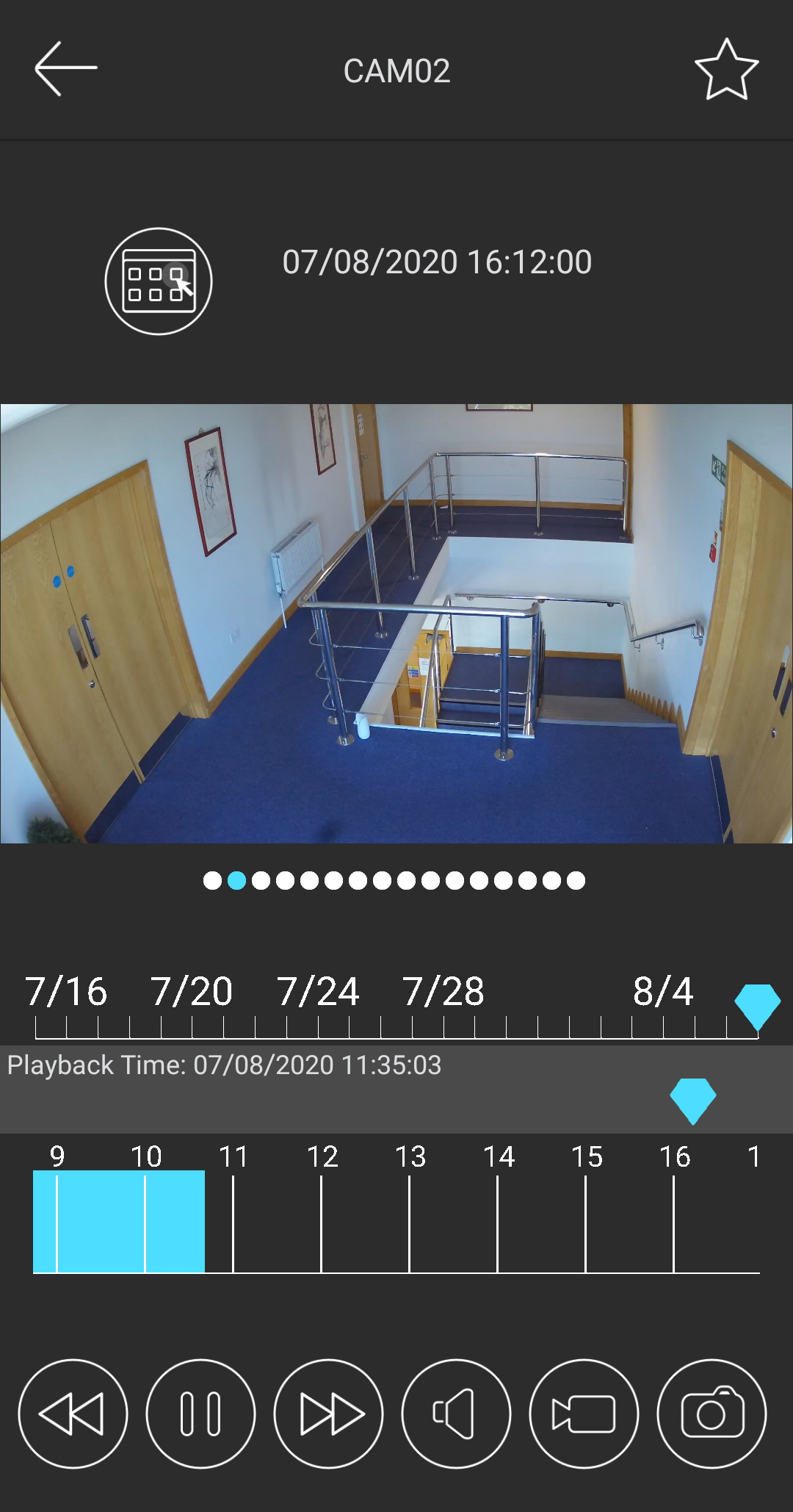

A timeline bar will be displayed beneath the camera image. Press and drag the timeline to the required time. Once you release the timeline, the app will automatically begin playing the recorded footage from the selected time.
You can continue to drag the timeline as needed to quickly navigate to different points within the recording.
Backup Video or Take a Snapshot
| Record / Backup video icon |
| Snapshot / Still Image Grab |
Wherever these icons are displayed in either Live View or Playback mode, it indicates that the currently displayed video can be captured or exported.
To export an incident, first locate the relevant footage using one of the playback methods described above.
Once the incident has been identified, make a note of the start and end times of the event.
Using the playback controls, begin playback from approximately 10–30 seconds before the incident occurs to ensure all relevant footage is included. Then tap the Backup/Export Video icon to begin the export process.
Allow the incident to play through in its entirety, including an additional 10–30 seconds after the event has concluded.
Once the required footage has been captured, tap the Backup/Export Video icon again to stop the recording process.
The app will then save the selected video clip to your mobile device, where it can be reviewed, shared, or uploaded as required.
A confirmation message should appear on the screen indicating that the video export has been completed successfully and showing the location where the recorded file has been saved on your device.
You can use the file path displayed in the message to locate the exported video for playback, sharing, or uploading as required.
