NVR P2P Guide - Adding an NVR to LILINPro using P2P

LILIN NVRs (3 Series and later) support P2P connectivity as a standard feature, allowing users to access their system remotely through the LILINPro mobile application.

Although the P2P licence is pre-installed on the NVR, the feature may need to be enabled before it can be used for remote access.

Once enabled, P2P provides a simple method of connecting to the NVR without requiring complex network configuration, such as port forwarding, making remote access quicker and easier to set up.

P2P Already Enabled Click Here


If P2P in not currently enabled follow the steps below

Enabling P2P on the NVR

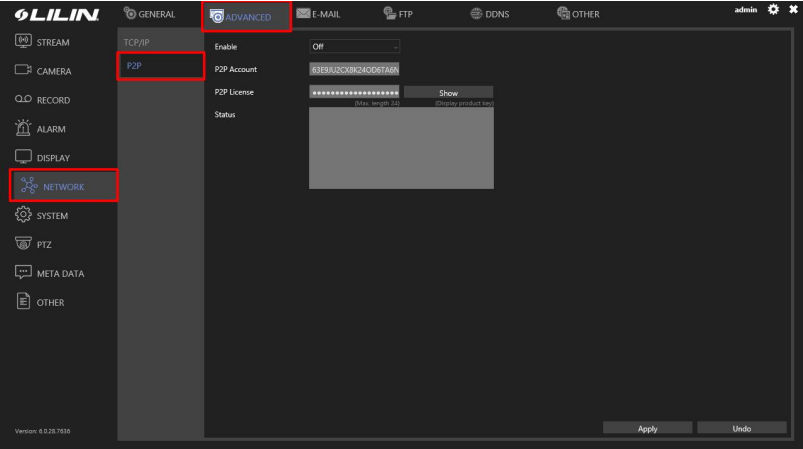

1. Access the NVR menu.

2. Navigate to Network using the left-hand menu.

3. Select the Advance tab at the top of the screen.

4. From the left-hand panel, click P2P.

5. You will see a drop-down option labelled Enable:

Set this to On

Click Apply

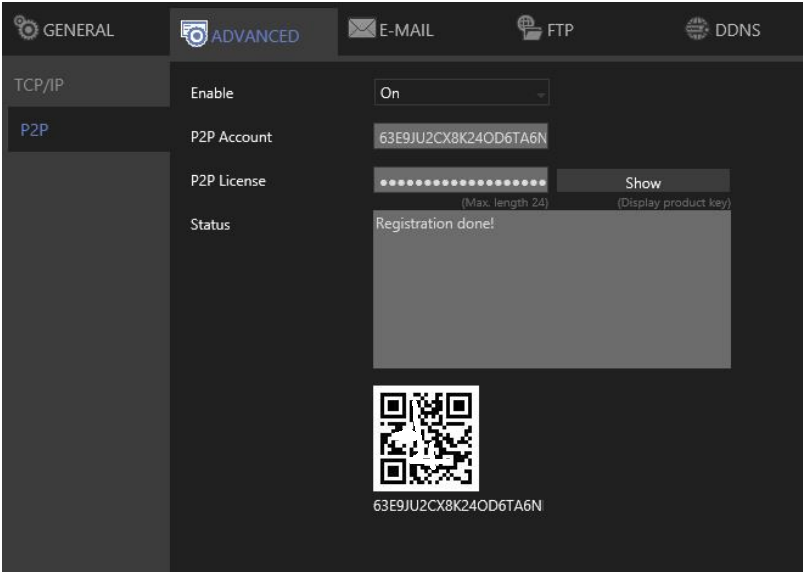

Once enabled, the NVR will show a QR code, displayed below the licence status box. The QR code will reflect the correct information based on the active licence key.

6. Ensure that the Status Box shows Registration done! before proceeding. If registration done! is not shown, it is unlikely the next steps will work correctly. It is recommended to follow the P2P Registration Failed guide here.

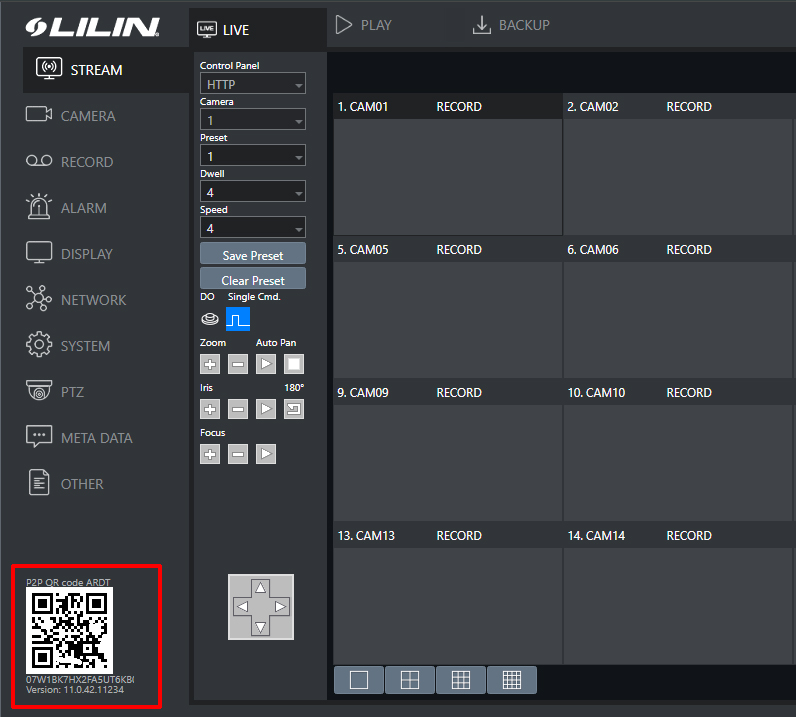

The P2P QR Code will also be displayed at the bottom of the NVR's main menu, as shown below.

Adding the NVR to LILINPro

1. Download the LILINPro app from your device’s app store.

2. Open the app once installation is complete.

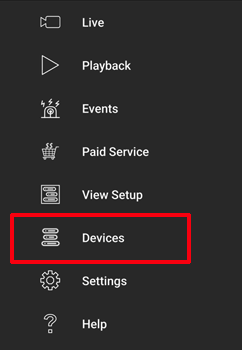

3. Select Devices from the menu bar.

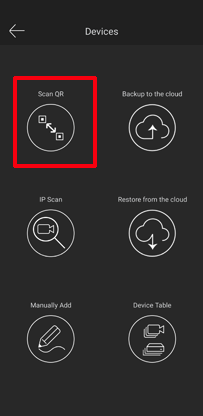

4. Tap Scan QR Code.

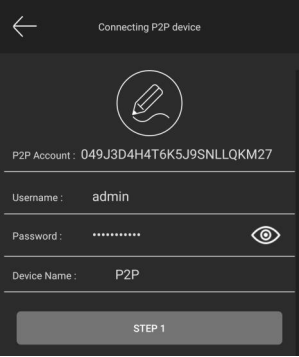

Scan the QR code displayed on the NVR. This will open a configuration screen where you must enter the following details:

Username
Password
Device Name (If you leave the device name blank the app will populate this with the NVR model number)

Note: The username and password must match the NVR’s login credentials.

After entering the required details, press Step 1 at the bottom of the screen.

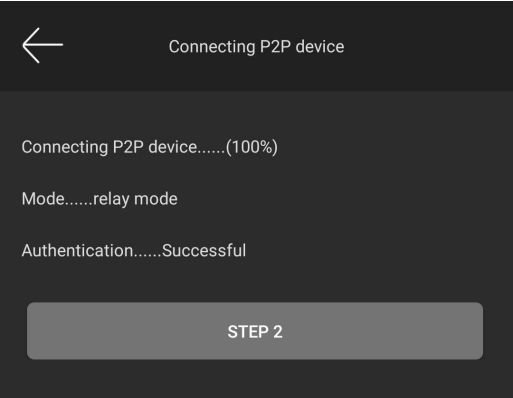

The app will verify the information entered.

Once verified, press Step 2.

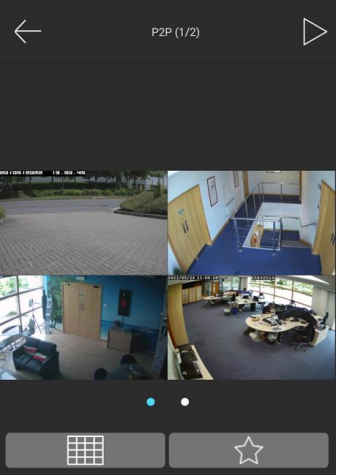

The app will connect to the NVR and display the cameras.


The setup is now complete.
